Filters immersed in suction to protect the pump from cavitation and seizures.
Maximum flow rate : 300 l / min
Filter media :
90 micron galvanized
steel mesh 25, 60, 125, 250 micron stainless steel mesh

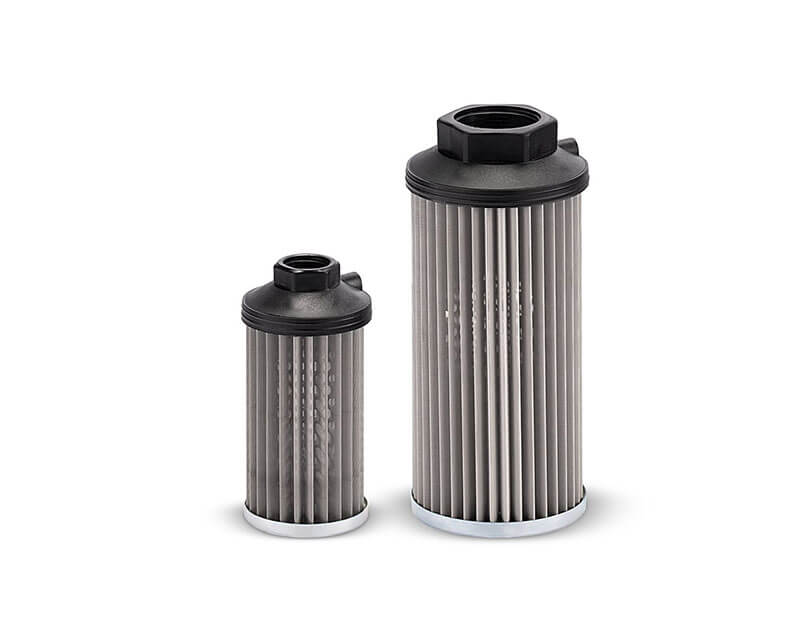

The Ikron HF410 suction filters are connected directly to the suction line of the circuit and protect the system components from contaminating particles.
Versions with incorporated by-pass valve are available.

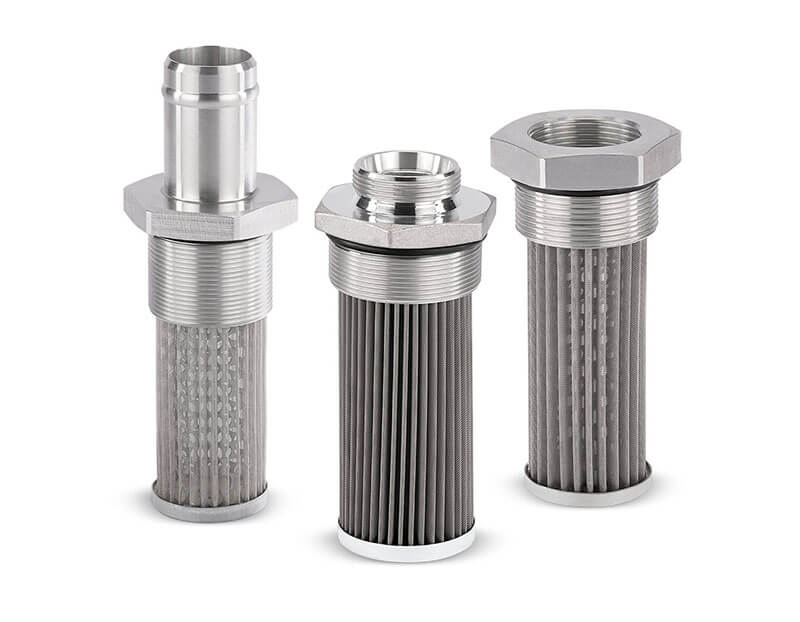

Ikron suction filters HF431/434/437
Semi-submerged suction filters easily replaceable and inspectable thanks to the aluminum connection.
Maximum flow rate : 220 l / min
Filter media :
60, 125, 250 micron stainless steel mesh
The Ikron HF431 / 434/437 suction filters are mounted on the side wall of the tank and protect the system components from contaminating particles. The aluminum fitting guarantees maximum reliability even at high temperatures and is available in the following configurations:
HF431 = hose connector + male
HF434 = male + male
HF437 = female + male
